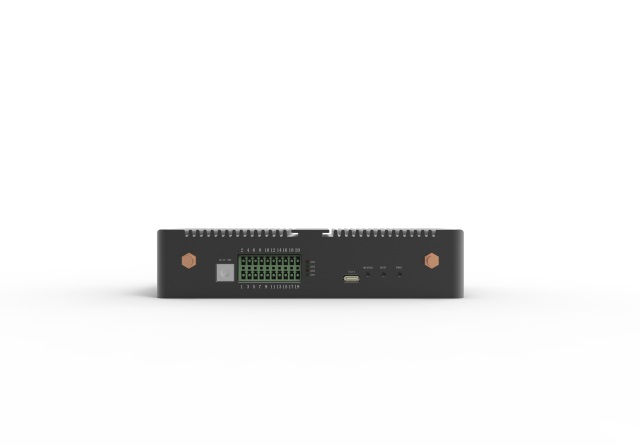

Leetop ALP 607 F is an embedded artificial intelligencecomputer developed based on NVIDIA's Orin NX/Orin Nano module, which can give up to 20/40/70/100TOPS computingpower to many terminal devices. Leetop ALP607_F provides afast active heat dissipation design that can meet industrystandards such as anti-vibration and anti-stati.At the sametime, Leetop ALP 607 F interfaces are rich and cost-effective
processor module
| Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | |
| AI Performance | 20 TOPS | 40 TOPS |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 | |
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
|
| Memory | 4GB 64-bit LPDDR5 34 GB/s | 8GB 128-bit LPDDR5 68 GB/s |
| Storage |
— (Supports external NVMe) |
|
I/O
| Interface | Specification |
| Network | 2 × Gigabit Ethernet Connector (10/100/1000) |
| USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0+3.0 Type |
| Video output | 1 × HDMI |
| CAN | 1 × CAN 1CAN（Receiver. Transceiver） |
| RS485 | 1 x RS485 |
| RS232 | 1 x RS232 |
| SPI Bus | 1 × SPI Bus(+3.3V Level) |
| Power | +12（7A)--+36V(3A) DC Input |
Power Supply
| Power Supply | Spec |
| Input Voltage | +12（7A)--+36V(3A) DC Input |
| Power consumption | 70W |
Mechanical
| Mechanical | Spec |
| Dimensions (W×D ×H) | 180x109.6x40(mm) |
| Weight | 805.8g |
Environmental
| Environmenta | Spec |
| Operating Temperature | -20℃-75℃ 0.2~0.3m/s Turbulence |
| Storage Temperature | -20℃-60℃ |
| Storage Humidity | 10%-90% non-condensing |
Schematic diagram of dimensions
| Front view | Left view |
 |
 |
| Up view | Bottom view |
 |
 |
Matching table
| Product name | Core module | SSD | communication | power |
| ALP-607-F | ||||
| J1:Orin Nano(4G) | ||||
| J2:Orin Nano(8G) | ||||
| J3:Orin NX(8G) | ||||
| J4:Orin NX(16G) | ||||
| N | ||||
| 128G | ||||
| 256G | ||||
| 512G | ||||
| 1T | ||||
| N | ||||
| 4G | ||||
| 5G | ||||
| N | ||||
| 01:Ming Wai | ||||
| 02:Customisation |
