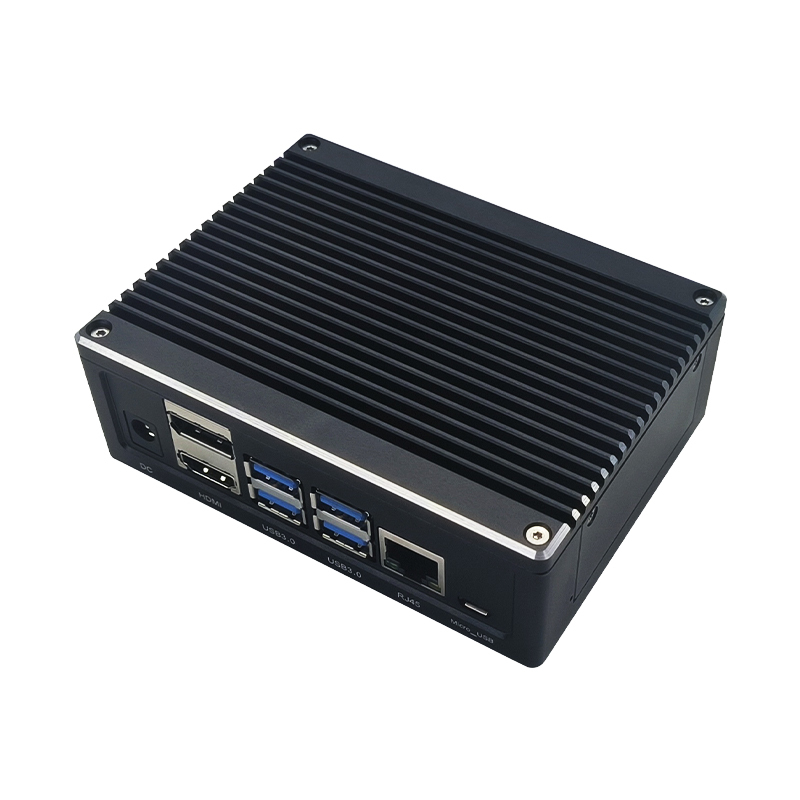

The Leetop ALP206 leverages NVIDIA Jetson cores to deliver up to 21TOPS of AI performance. Designed for industrial resilience, it offers robust passive cooling, shock resistance, and a rich interface set for versatile applications.
processor module
|
Jetson Xavier NX 8GB |
Jetson Xavier NX 16GB |
| AI Performance |
21 TOPS |
| GPU |
384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU |
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Video Encode |
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264) |
| Video Decode |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Memory |
8 GB 128-bit LPDDR4x 59.7GB/s |
16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage |
16 GB eMMC 5.1 * |
|
Jetson Nano |
Jetson Tx2 NX |
| AI Performance |
472 GFLOPs |
1.33 TFLOPs |
| GPU |
128-core NVIDIA Maxwell™ GPU |
256-core NVIDIA Pascal™ GPU |
| CPU |
Quad-Core Arm® Cortex®-A57 MPCore processor |
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor |
| Video Encode |
1x 4K30 2x1080p60 4x1080p30 4x720p60 9x720p30 (H.265 & H.264) |
1x 4K60 3x 4K30 4x 1080p60 8x 1080p30 (H.265) 1x 4K60 3x 4K30 7x 1080p60 14x 1080p30 (H.264) |
| Video Decode |
1x 4K60 2x 4K30 4x 1080p60 8x 1080p30 9x 720p60 (H.265 & H.264) |
2x 4K60 4x 4K30 7x 1080p60 14x 1080p30 (H.265 & H.264) |
| Memory |
4 GB 64-bit LPDDR4 25.6GB/s |
4 GB 128-bit LPDDR4 51.2GB/s |
| Storage |
16GB eMMC 5.1 |
16 GB eMMC 5.1 |
Interface I/O
| Interface |
Interface Specification |
| Network |
1 × Gigabit Ethernet Connector (10/100/1000) |
| USB |
4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0Type C |
| Video output |
1 × HDMI |
| Camera |
2x Camera |
| CAN |
1 × CAN 1CAN（Receive. Transceiver） |
| SPI Bus 1 × SPI Bus(+3.3V Level) |
1 × SPI Bus(+3.3V Level) |
| Power |
+13---+19V DC Input @ 8A |
Power Supply
| Power Supply |
Spec |
| Input Voltage |
+13---+19V DC Input @ 8A |
| Power consumption |
45W |
Mechanical
| Mechanical |
Spec |
| Dimensions (W×D ×H) |
116x86.7x40.1(mm) |
| Weight |
0.67KG |
Environmental
| Environmenta |
Spec |
| Operating Temperature |
-20℃-70℃ Turbulence |
| Storage Humidity |
10%-90%Non-condensing environment |
Schematic diagram of dimensions

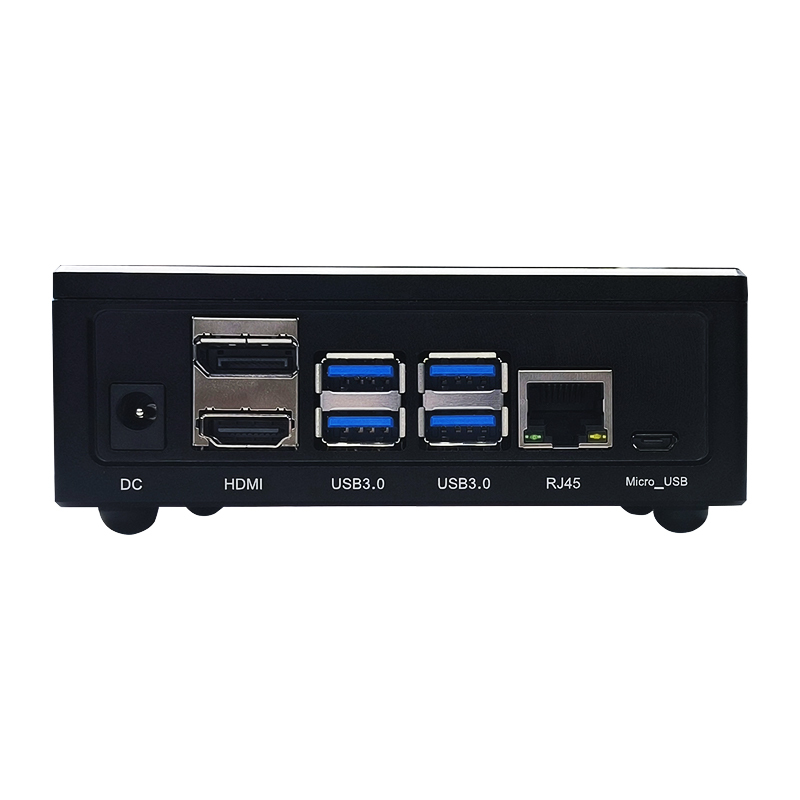

| Front view |

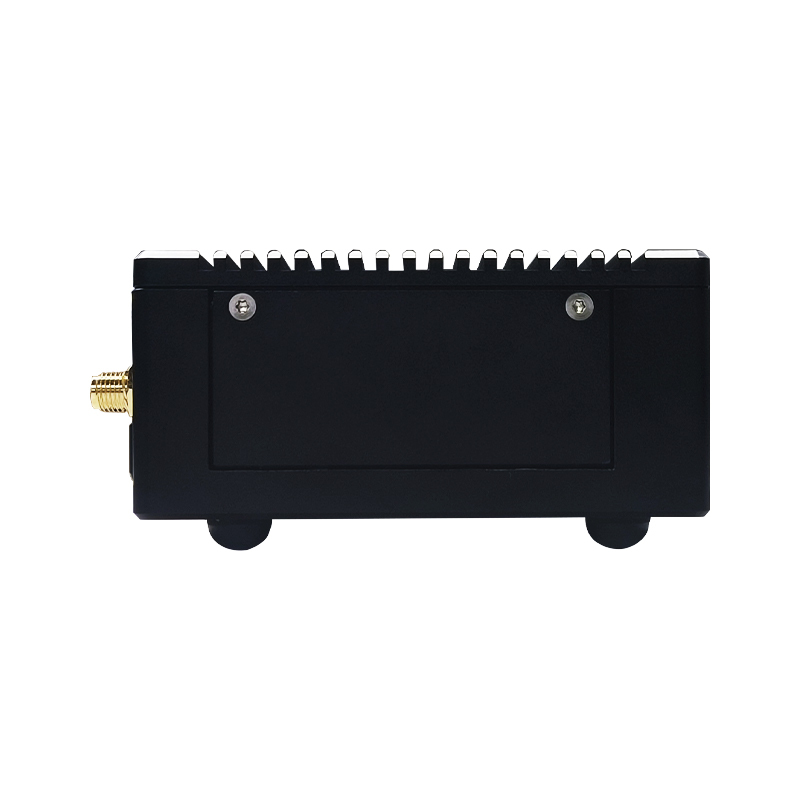

Left view |
 |
 |
| Up view |
Bottom view |
 |
 |
Matching table
| Product name |
Core module |
SSD |
communication |
power |
| ALP_206 |
|
|
|
|
|
J1:Nano |
|
|
|
|
J2:Xavier NX(8G) |
|
|
|
|
J3:Xavier NX(16G) |
|
|
|
|
J4:TX2 NX |
|
|
|
|
|
N |
|
|
|
|
128G |
|
|
|
|
256G |
|
|
|
|
512G |
|
|
|
|
1T |
|
|
|
|
|
N |
|
|
|
|
|
N |
|
|
|
|
01:Ming Wai |
|
|
|
|
02:Customisation |
